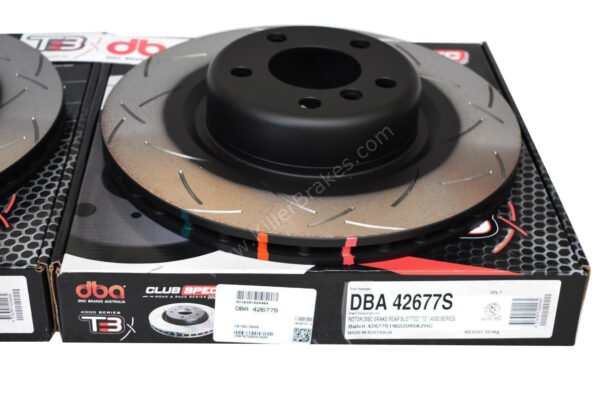

BMW Rear DBA42677S Brake Discs 345x24mm 4000 series T3 Slotted

0 out of 5

318 ex. VAT Available on backorder, please ask for delivery date before ordering

High-quality BMW Rear DBA brake discs with T3 slotted design for maximum performance and durability.

Description

BMW Rear DBA42677S Brake Discs 345x24mm 4000 series T3 Slotted

BMW Rear DBA42677S Brake Discs 345x24mm 4000 series T3 Slotted

T3 4000 Kangaroo Paw

Feature Description Advantage Benefit
t3‘T3 Slot 48 precision CNC machined slots’



  • Tri-Symmetrical curve slots dampens the vibration harmonics or noise
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design



  • A quieter, responsive and smoother brake pedal feel
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs



kpKangaroo Paw – 144 diamon    d and tear drop pillar ventilation system



  • Increased surface area resulting in greater heat dissipation
  • Increased surface area resulting in greater heat dissipation



  •  Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron



  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
tspThermal Stability Profiling



  • Special formulation designed to respond to DBA’s TSP process
  • Minimises warping and cracking and prolongs the service life of the rotor
moitorThermographic Temperature Monitoring



  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours



  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims



pPaint protection on non-friction areas



  • Reduces corrosion
  • Enhances appearance



  • Stops any unsightly rust formation
  • Adds value to the product





What is included:

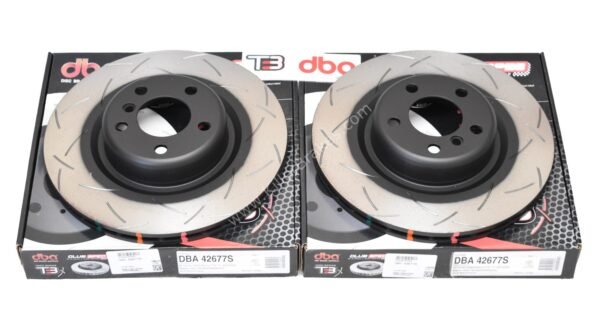

  • 2x(1Pair) Rear DBA42677S 345x24mm Brake Discs 4000 series T3 Slotted New (OEM BMW Product code: 34206797605) New



Technical Information:

  • Diameter [MM]:345
  • Disc Vent:Kangaroo Paw
  • Number Of Holes:5
  • Inner Diameter [MM]:75
  • Min. Thickness [MM]:22.4
  • Thickness [MM]:24
  • Height [MM]:66.1
  • PCD:120
  • Weight [KG]:12.80

Application:

Axle             Make              Model      Engine / Year

  • Rear BMW     1 Series (F20)     M135 (3.0 Turbo) (2012-)
  • Rear BMW     1 Series (F20)     M140 (3.0 Turbo) (2016-)
  • Rear BMW     1 Series (F21)     M135 (3.0 Turbo) (2012-)
  • Rear BMW     1 Series (F21)     M140 3.0 Turbo (2016-)
  • Rear BMW     1 Series xDrive (F20)       M135 (3.0 Turbo) (2012-)
  • Rear BMW     1 Series xDrive (F20)       M140 (3.0 Turbo) (2016-)
  • Rear BMW     1 Series xDrive (F21)       M135 (3.0 Turbo) (2012-)
  • Rear BMW     1 Series xDrive (F21)       M140 (3.0 Turbo) (2016-)
  • Rear BMW     2 Series (F22) Coupe       228 (2.0 Turbo) (2014-2016)
  • Rear BMW     2 Series (F22) Coupe       230 (2.0 Turbo) (2016-)
  • Rear BMW     2 Series (F22) Coupe       M235 (3.0 Turbo) (2013-2016)
  • Rear BMW     2 Series (F22) Coupe       M240 (3.0 Turbo) (2016-)
  • Rear BMW     2 Series (F23) Convertible            230 (2.0 Turbo) (2016-)
  • Rear BMW     2 Series (F23) Convertible            M235 (3.0 Turbo) (2014-2016)
  • Rear BMW     2 Series (F23) Convertible            M240 (3.0 Turbo) (2016-)
  • Rear BMW     2 Series xDrive (F22) Coupe         M235 (3.0 Turbo) (2013-2016)
  • Rear BMW     2 Series xDrive (F22) Coupe         M240 (3.0 Turbo) (2016-)
  • Rear BMW     2 Series xDrive (F23) Convertible               M235 (3.0 Turbo) (2014-2016)
  • Rear BMW     2 Series xDrive (F23) Convertible               M240 (3.0 Turbo) (2016-)

For more information please contact us at Office@killerbrakes.com

Additional information

Weight 24 kg
Dimensions 40 × 40 × 30 cm
Condition:

Brand:

Product code:

DBA42677S

Bmw Product code:

34206797605
