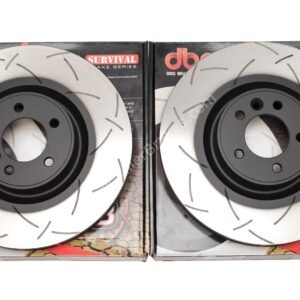

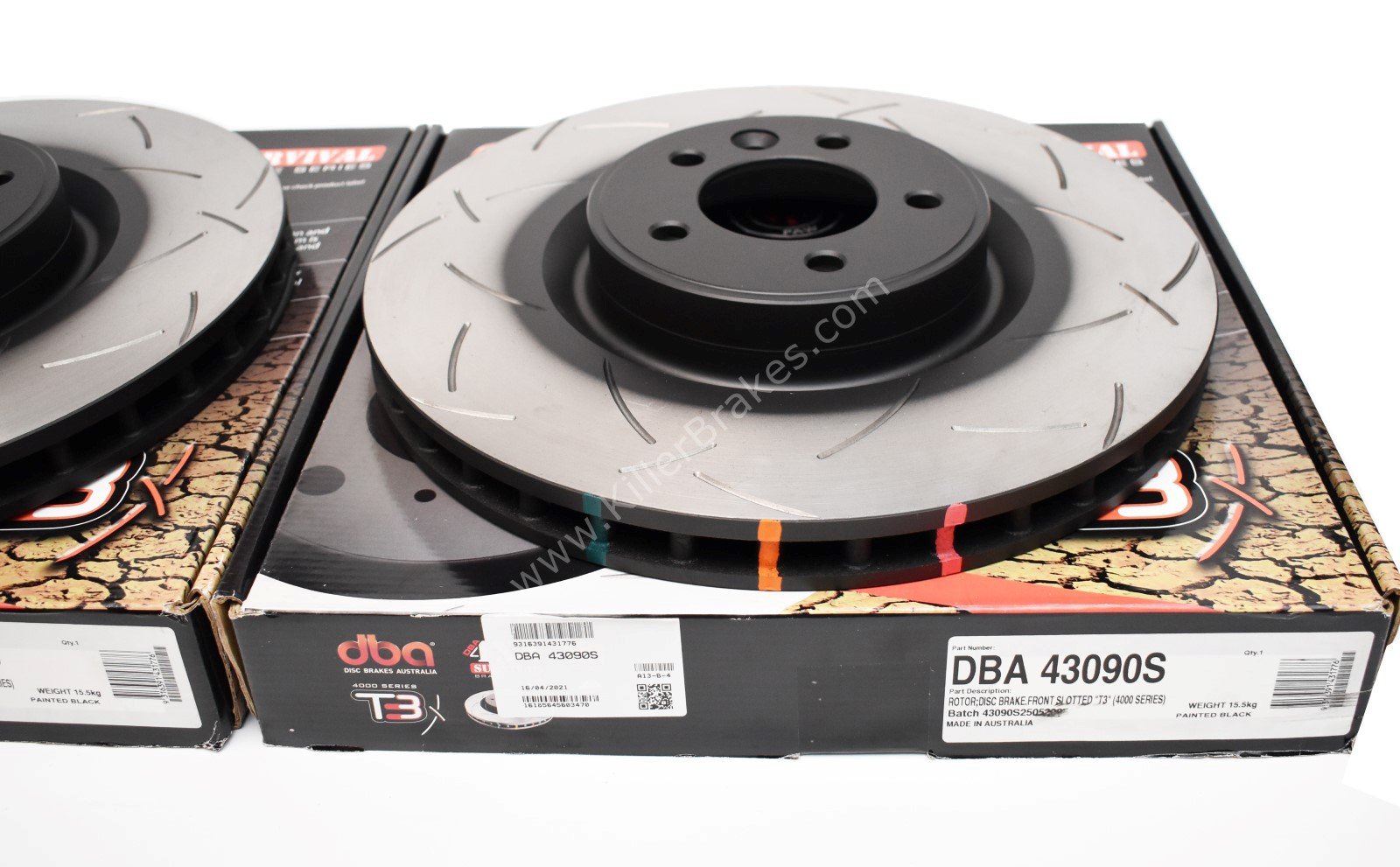

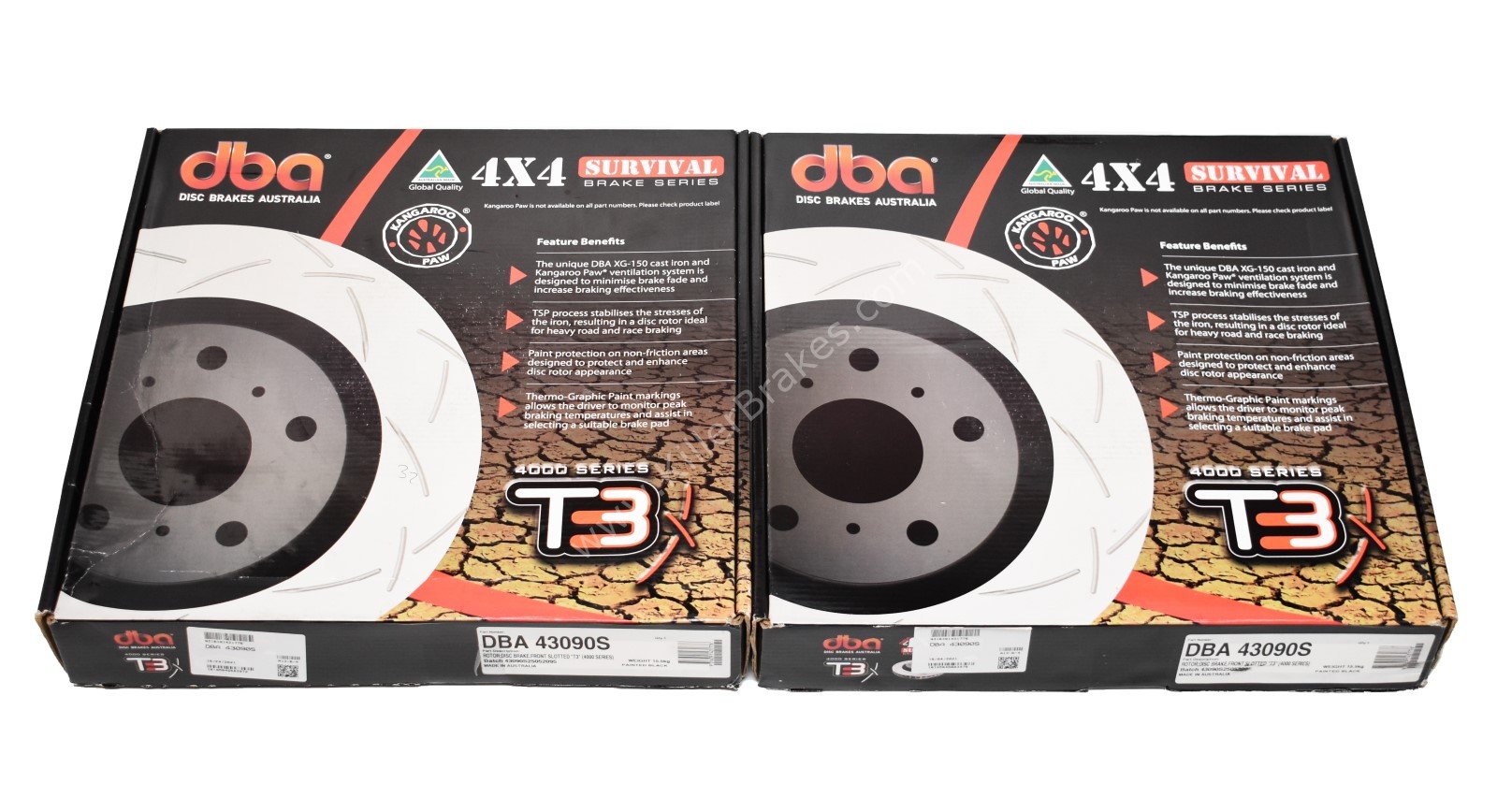

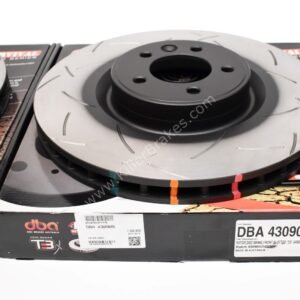

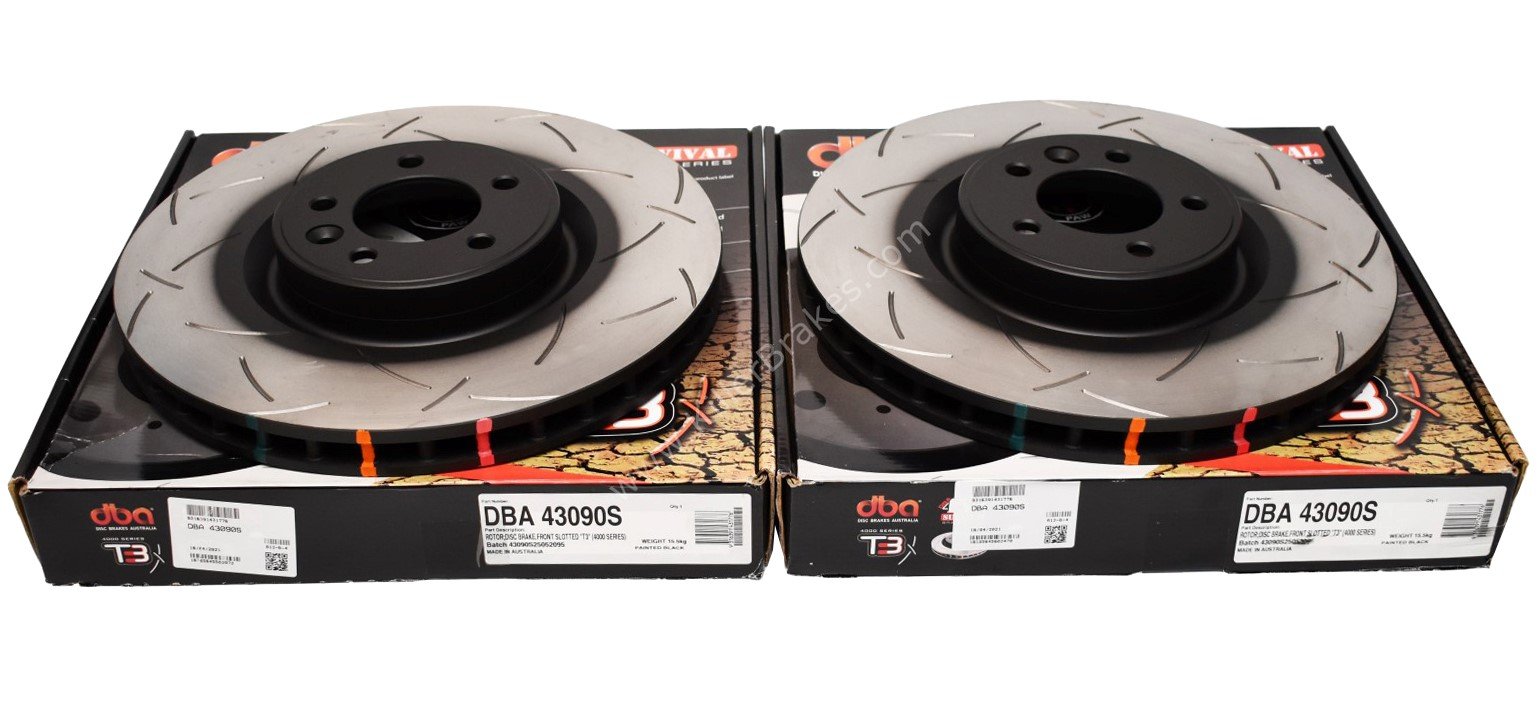

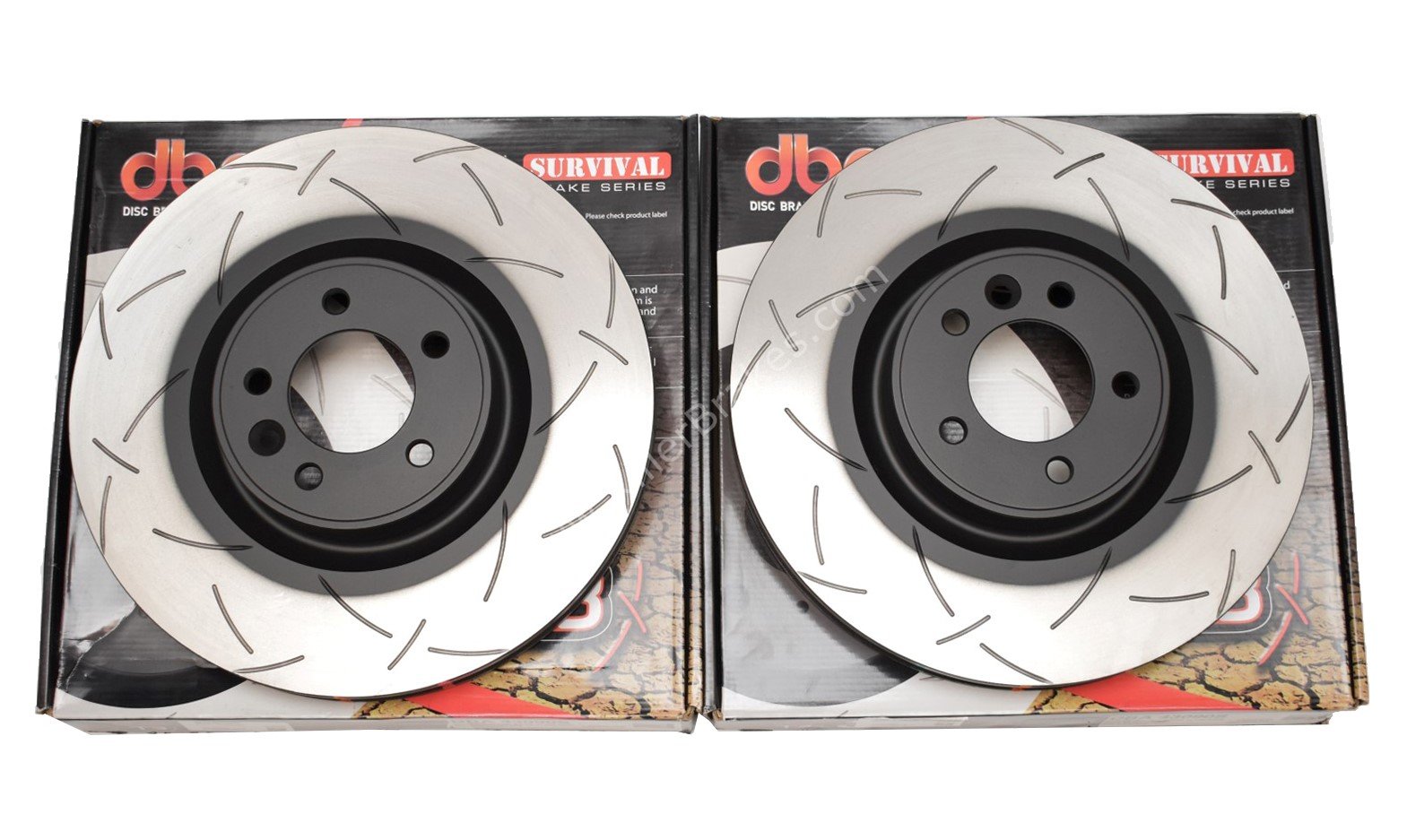

Front DBA43090S Brake Discs Slotted T3 Range Rover Sport 380x34mm

Description

Front DBA43090S Brake Discs Slotted T3 Range Rover Sport 380x34mm

Front DBA43090S Brake Discs Slotted T3 Range Rover Sport 380x34mm

Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

What is included:

• 2x Front(1pair) DBA43090S Slotted Brake Discs 380x34mm  , (Land Rover Product code: LR016176) NEW
  5×120 , 34mm wide

Technical Information:

• Diameter [MM]:380
• Disc Vent:VENTED
• Number Of Holes:5
• Inner Diameter [MM]:79
• Min. Thickness [MM]:31
• Thickness [MM]:34
• Height [MM]:62
• PCD:120
• Stage 4
• Weight [KG]:15.54

Application:

Axle           Make                          Model                                 Engine / Year

• Front LAND ROVER      Range Rover (L405)          0 Supercharged (2013-)
• Front LAND ROVER      Range Rover (L405)          0 TD (2012-)
• Front LAND ROVER      Range Rover (L405)          0 TD hybrid (2016-)
• Front LAND ROVER      Range Rover (L405)          4 TD (2012-)
• Front LAND ROVER      Range Rover (L405)          0 (2012-)
• Front LAND ROVER      Range Rover (L405)          0 Supercharged (2012-)
• Front LAND ROVER      Range Rover (L405)          0 Supercharged (2015-)
• Front LAND ROVER      Range Rover Sport (L320)              0 Supercharged (2009-2013)
• Front LAND ROVER      Range Rover Sport (L494)              0 Supercharged (2013-)
• Front LAND ROVER      Range Rover Sport (L494)              0 Supercharged (2015-)
• Front LAND ROVER      Range Rover Sport (L494)              0 TD (2014-)
• Front LAND ROVER      Range Rover Sport (L494)              0 TD hybrid (2016-)
• Front LAND ROVER      Range Rover Sport (L494)              4 TD (2014-)
• Front LAND ROVER      Range Rover Sport (L494)              0 Supercharged (2013-)
• Front LAND ROVER      Range Rover Sport (L494)              0 Supercharged (2014-)

For more information please contact us at Office@killerbrakes.com
