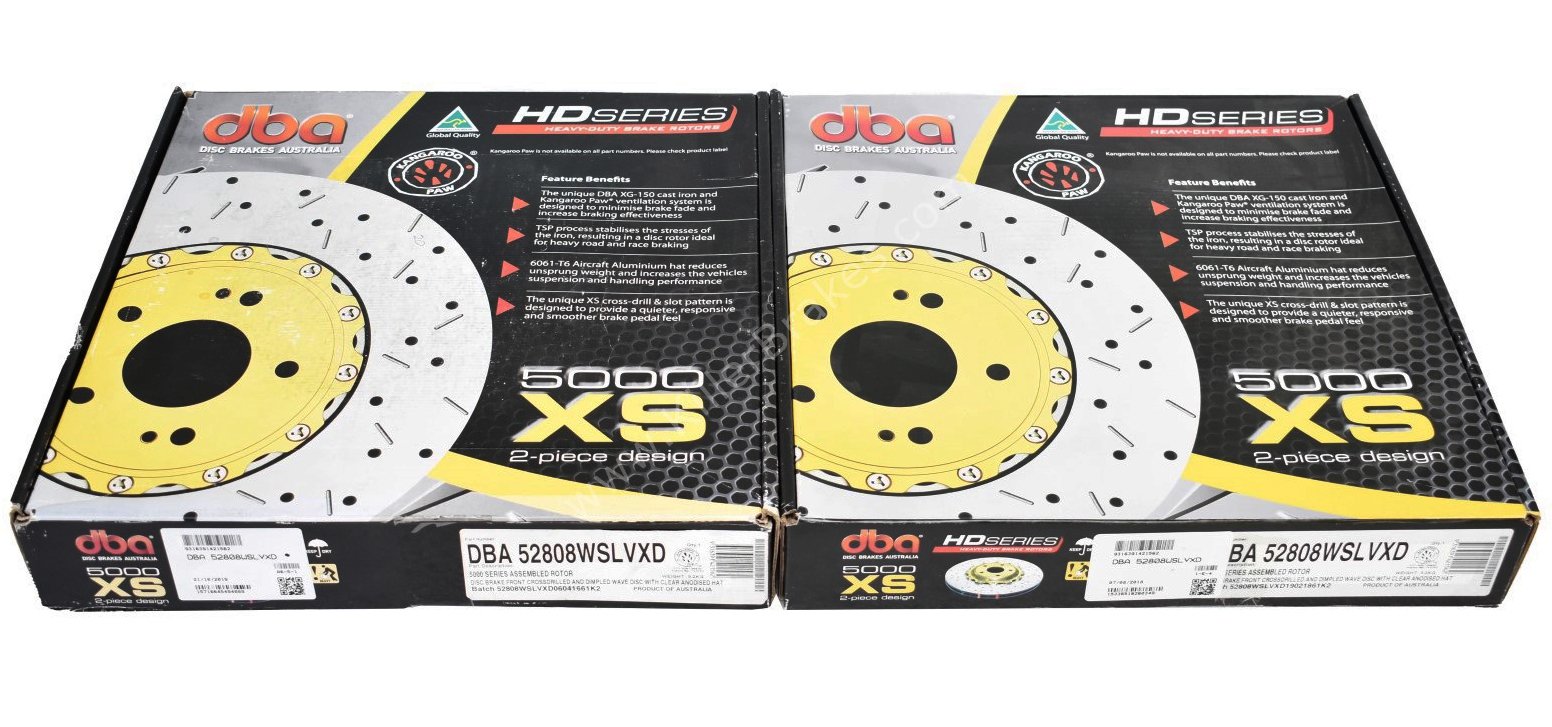

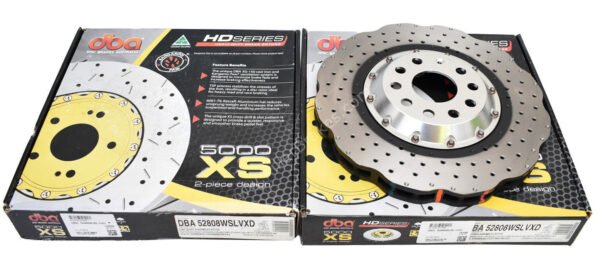

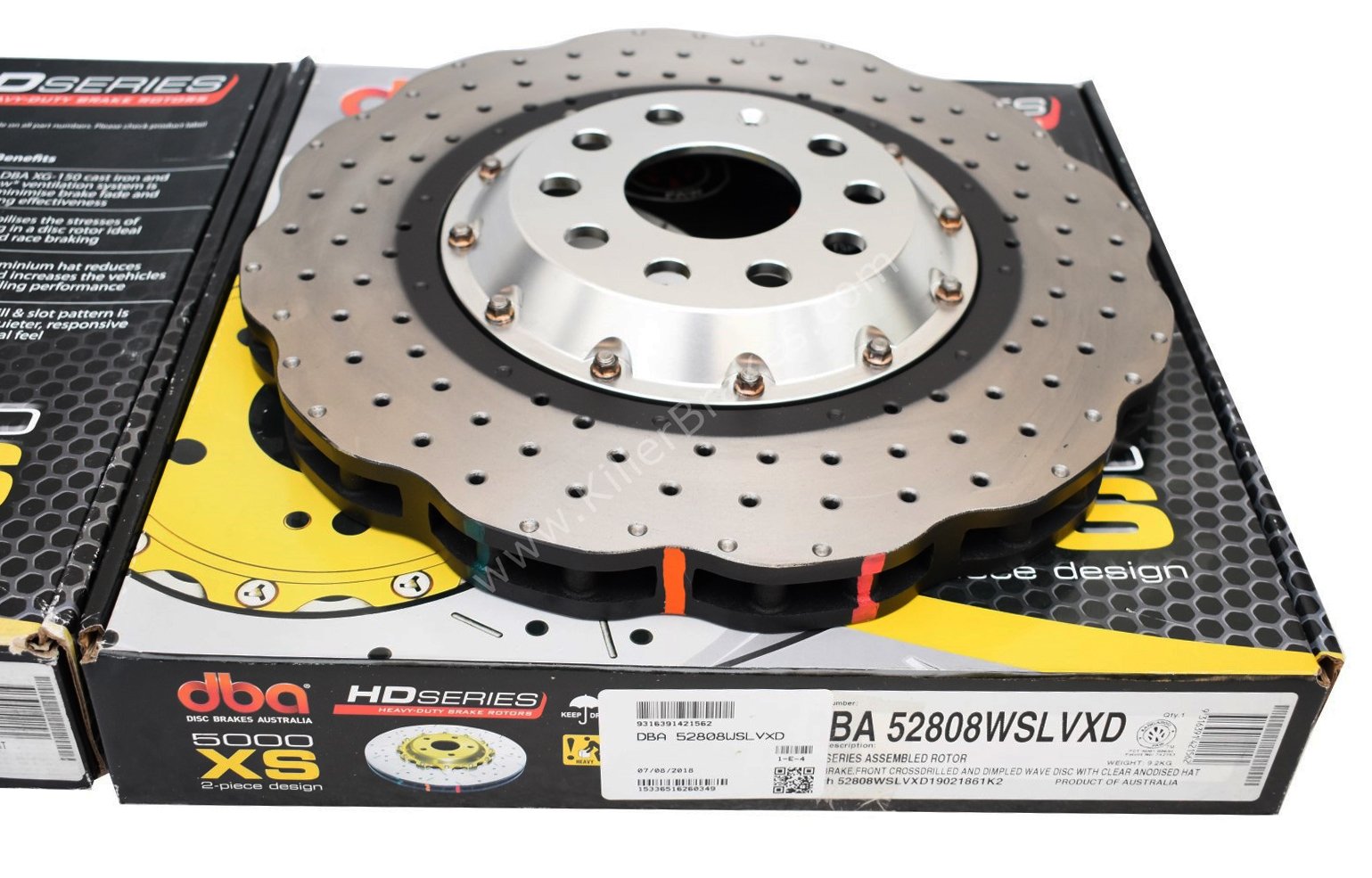

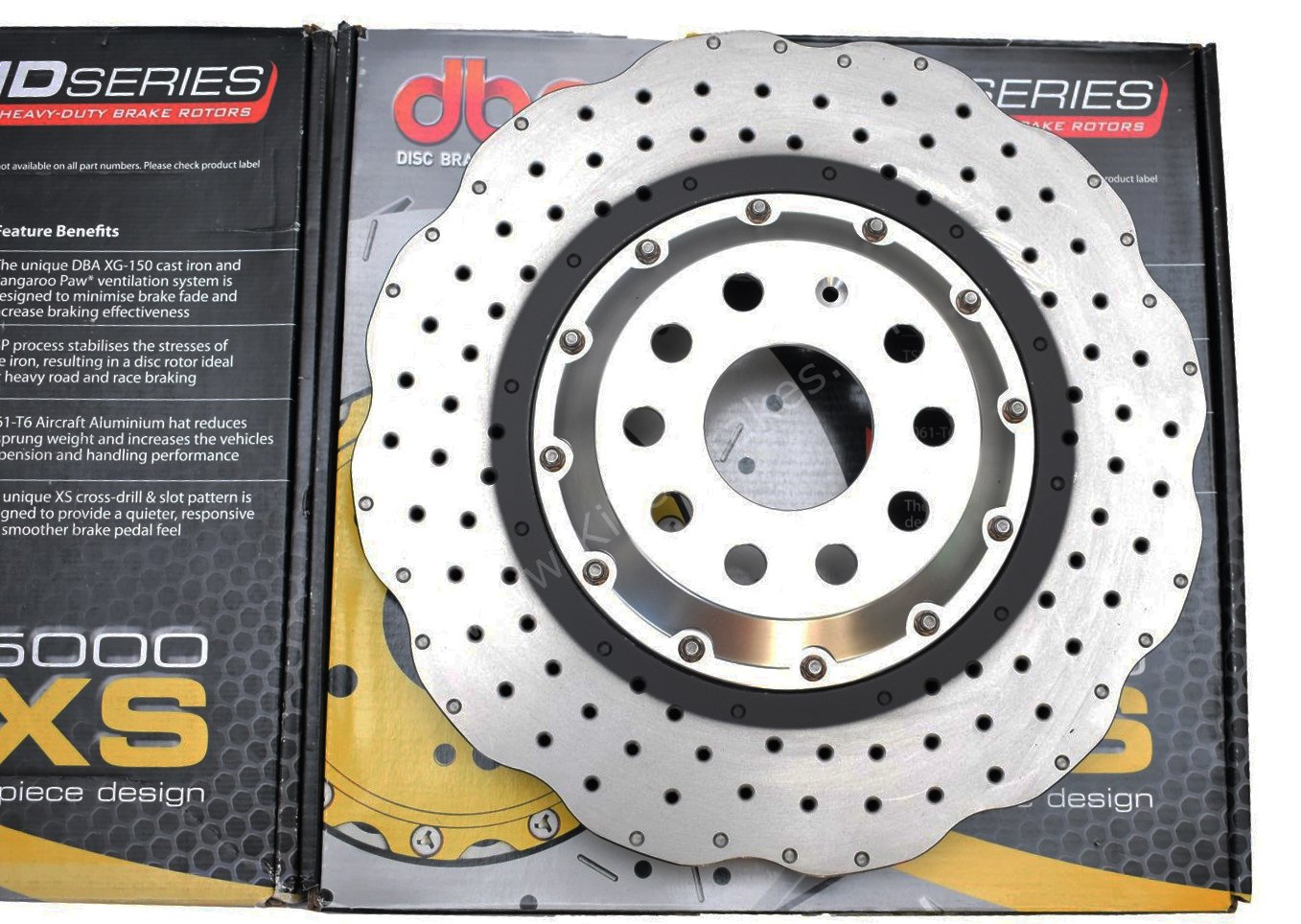

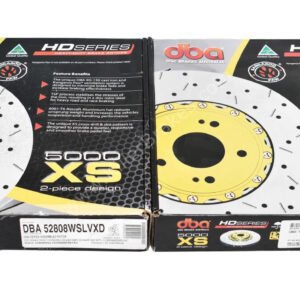

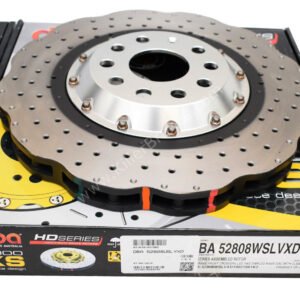

Front DBA52808WSLVXD Brake Discs 345x30mm 2-piece 5000 series Drilled New

Description

Front DBA52808WSLVXD Brake Discs 345x30mm 2-piece 5000 series Drilled New

Front DBA52808WSLVXD Brake Discs 345x30mm 2-piece 5000 series Drilled New

Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

What is included:

• 2x(1Pair) Front DBA Wave Brake Discs Front DBA52808WSLVXD  345x30mm 2-piece 5000 series Drilled (Oem Product code: 1K0615301M) New

Technical Information:

• Diameter [MM]:345
• Disc Vent:Kangaroo Paw
• Number Of Holes:5
• Inner Diameter [MM]:65
• Min. Thickness [MM]:28
• Thickness [MM]:30
• Height [MM]:50
• PCD:112
• Weight [KG]:9.7

Compatibility:

Axle       Make    Model   Engine / Year

Front     AUDI     A3 quattro (8P) 3.2 (2003-2009)

Front     AUDI     S3 (8P)  2.0 Turbo PR-1LK (2006-2012)

Front     AUDI     S3 (8P)  2.0 Turbo PR-1ZK (2006-2012)

Front     SEAT      Leon (1P)             2.0 Turbo Copa (2008-2013)

Front     SEAT      Leon (1P)             2.0 Turbo Cupra (2006-2013)

Front     SEAT      Leon (1P)             2.0 Turbo Cupra (2008-2009)

Front     SEAT      Leon (1P)             2.0 Turbo Cupra R (2009-2013)

Front     SKODA  Superb (3T)         1.8 Turbo 4WD (2008-2015)

Front     SKODA  Superb (3T)         2.0 TD 4WD (2008-2015)

Front     SKODA  Superb (3T)         2.0 Turbo (2010-2015)

Front     SKODA  Superb (3T)         3.6 4WD (2008-2015)

Front     VOLKSWAGEN  Eos         3.2 (2006-2009)

Front     VOLKSWAGEN  Eos         3.6 (2009-2011)

Front     VOLKSWAGEN  Golf (Mk5)          3.2 R32 (2005-2009)

Front     VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LK) (2009-2013)

Front     VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LM) (2009-2013)

Front     VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1ZK) (2009-2013)

Front     VOLKSWAGEN  Passat   2.0 Turbo (2005-2010)

Front     VOLKSWAGEN  Passat   2.0 Turbo (2011-2014)

Front     VOLKSWAGEN  Passat   3.2 from chassis code 3C8 (2005-2010)

Front     VOLKSWAGEN  Passat   3.2 to chassis code 3C7 (2005-2010)

Front     VOLKSWAGEN  Passat   3.6 from chassis code 3C8 (2007-2012)

Front     VOLKSWAGEN  Passat   3.6 to chassis code 3C7 (2007-2012)

Front     VOLKSWAGEN  Passat CC             2.0 Turbo (2008-2012)

Front     VOLKSWAGEN  Passat CC             3.6 4 Motion (2008-2012)

Front     VOLKSWAGEN  Scirocco                2.0 Turbo R (2009-2014)

Front     VOLKSWAGEN  Scirocco                2.0 Turbo R (2014-)

Minimum wheel size 17”

For more information please contact us at Office@killerbrakes.com
