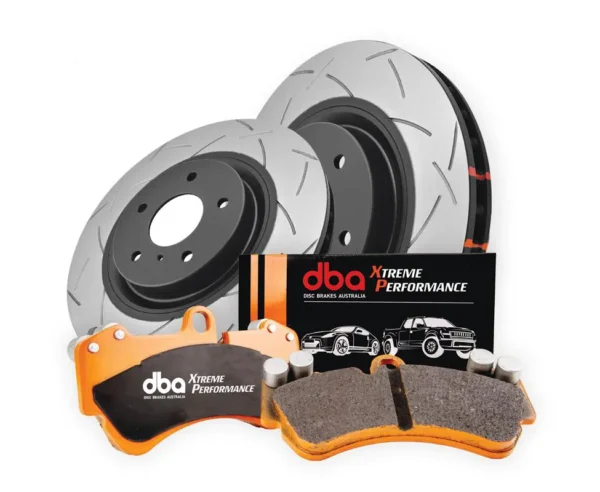

Rear DBA42809S DB15006XP Xtreme Performance Combo Pack

Description

Rear DBA42809S DB15006XP Xtreme Performance Combo Pack

Rear DBA42809S DB15006XP Xtreme Performance Combo Pack





Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamond and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

Xtreme Performance (XP)

DBA’s Xtreme Performance brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures, the XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

Street Performance part numbers are denoted by the suffix (XP).

DBA recommends Xtreme Performance brake pads for street performance and police pursuit vehicles, as well as club track days, heavy towing and upgraded 4WD’s.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.



Specifications:

• Semi-metallic, carbon fibre friction material
• G-G Class Friction (0.45 average mu from low to high temperatures)
• Excellent high temperature performance
• Optimal braking consistency up to 550℃ (1022℉)

What is included:

• 2x(1Pair) Rear Brake Discs DBA42809S 310x22mm- 4000 series – T3 Slotted (Audi Product code:1K0615601N) New

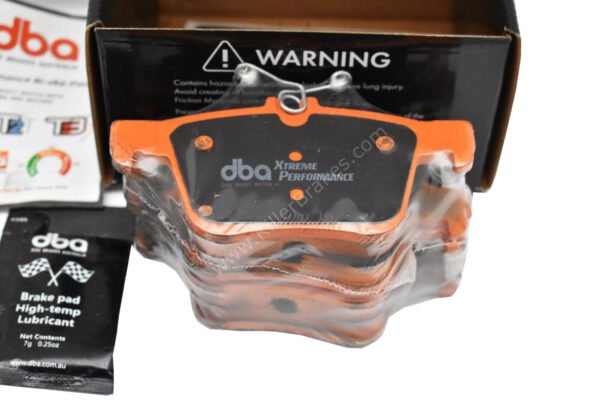

• 1x Set of Rear Brake Pads with wear sensor Xtreme Performance DBA DB15006XP Brake Pads (Audi Product Code: 8V0698451E) New

Technical Information:

• Diameter (mm): 310
• Height (mm): 48.5
• Thickness (mm): 22
• Min. Thickness (mm): 20
• Inner Diameter (mm): 65
• Number of Holes: 5
• Disc Vent: Kangaroo Paw
• Axle: Rear
• Weight (kg): 6.93

Brake Pads Size:

• Height [MM]:123
• Width [MM]:I:61.3;O:56.4
• Pad Thickness [MM]:15.1
• FMSI:WVA: WVA: 22601/25011/25009
• Weight [KG]:1.39

Compatibility:

Axle       Make    Model   Engine / Year

• Rear AUDI     S3 (8V) 0 Turbo (2013-2016)
• Rear AUDI     S3 (8V) 0 Turbo (2016-2020)
• Rear AUDI     TT quattro (8S)  0 Turbo (2014-)
• Rear AUDI     TTS quattro (8S)                0 Turbo (2014-)
• Rear AUDI     TTS quattro (8S)                0 Turbo (2015-)
• Rear AUDI RS3 (8V) 2.5 Turbo (06/2017-) (sedan)
• Rear AUDI RS3 (8V) 2.5 Turbo (10/2017-) (sportback)
• Rear AUDI RS3 (8V) 2.5 Turbo (2015-06/2017) (hatchback)
• Rear AUDI TT RS quattro (8S) 2.5 Turbo (2016-)
• Rear SEAT      Leon (5F)             0 Turbo Cupra (2014-2016)
• Rear SEAT      Leon (5F)             0 Turbo Cupra (2015-2018)
• Rear CUPRA Ateca 2.0 Turbo 296hp (2018-)
• Rear SKODA  Kodiaq  4 Turbo (2016-2019) 2WD
• Rear SKODA  Kodiaq  4 Turbo (2016-2019) 4WD
• Rear SKODA  Kodiaq  5 Turbo (2018-) 2WD
• Rear SKODA  Kodiaq  5 Turbo (2018-) 4WD
• Rear SKODA  Kodiaq  0 TD (2016-) 2WD
• Rear SKODA  Kodiaq  0 TD (2016-) 4WD
• Rear SKODA  Kodiaq  0 TD RS (2018-) 4WD
• Rear SKODA  Kodiaq  0 Turbo (2016-2019) 4WD
• Rear SKODA  Kodiaq  0 Turbo (2018-) 4WD
• Rear SKODA  Octavia (5E)        0 Turbo RS (2017-)
• Rear SKODA  Octavia (5E)        0 Turbo vRS (2015-)
• Rear SKODA  Octavia (5E)        0 Turbo vRS (2017-)
• Rear SKODA  Superb (3V)        0 Turbo (2015-)
• Rear VOLKSWAGEN  Arteon  5 Turbo (2018-)
• Rear VOLKSWAGEN  Arteon  0 TD (2017-)
• Rear VOLKSWAGEN  Arteon  0 TD (2018-)
• Rear VOLKSWAGEN  Arteon  0 TD 4motion (2018-)
• Rear VOLKSWAGEN  Arteon  0 Turbo (2018-)
• Rear VOLKSWAGEN  Arteon  0 Turbo 4motion (2017-)
• Rear VOLKSWAGEN  Arteon  0 Twin TD (2017-)
• Rear VOLKSWAGEN  CC           0 Turbo (2012-2017)
• Rear VOLKSWAGEN  CC           6 (2012-2017)
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Clubsport (2016-2019) TRW
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Clubsport S (2016-2019) TRW
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Performance Package (2013-2017) TRW
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Performance Package (2017-2019) TRW
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo R (2013-2019) TRW
• Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo R (2017-2019) TRW
• Rear VOLKSWAGEN  Passat   0 Turbo (2015-)
• Rear VOLKSWAGEN  Passat   0 Twin TD (2014-)
• Rear VOLKSWAGEN  Passat   6 4 Motion (2012-2014)
• Rear VOLKSWAGEN  Passat Alltrack (3G)         0 TD (2015-)
• Rear VOLKSWAGEN  Passat Alltrack (3G)         0 Turbo (2015-)
• Rear VOLKSWAGEN  Tiguan (Mk2)     4 Turbo (2016-)
• Rear VOLKSWAGEN  Tiguan (Mk2)     0 TD (2016-)
• Rear VOLKSWAGEN  Tiguan (Mk2)     0 Turbo (2016-)
• Rear VOLKSWAGEN  Tiguan (Mk2)     0 Twin TD (2016-)
• Rear VOLKSWAGEN  Tiguan Allspace 4 Turbo (2017-)
• Rear VOLKSWAGEN  Tiguan Allspace 0 TD (2017-)
• Rear VOLKSWAGEN  Tiguan Allspace 0 TD 4Motion (2017-)
• Rear VOLKSWAGEN  Tiguan Allspace 0 Turbo 4Motion (2017-)
• Rear VOLKSWAGEN  Tiguan Allspace 0 Twin TD 4Motion (2017-)



Minimum wheel size 17”



For more information please contact us at Office@killerbrakes.com

Additional information

Weight	24 kg
Dimensions	40 × 40 × 30 cm
Condition:	New
Brand:	DBA
Product code:	DBA42809S, DB15006XP
Audi Product code:	8V0698451E, 1K0615601N
