Front Bmw G series DBA43417S Brake Discs 348x36mm 4000 series Slotted

0 out of 5

454 ex. VAT Available on backorder, 3-4days after order is received

Upgrade your BMW G Series with Front Bmw G series DBA43417S Brake Discs 348x36mm. 4000 series T3 slotted material, these discs offer excellent performance and durability.

Description

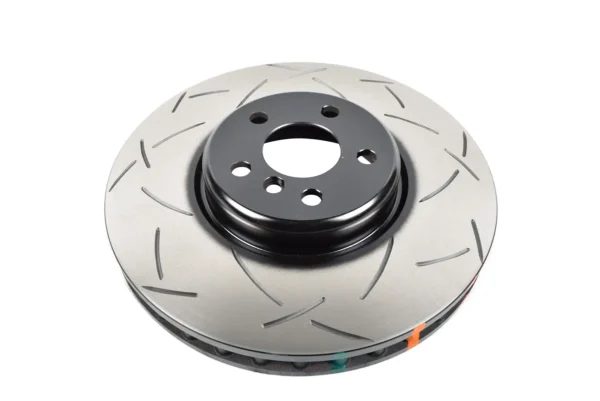

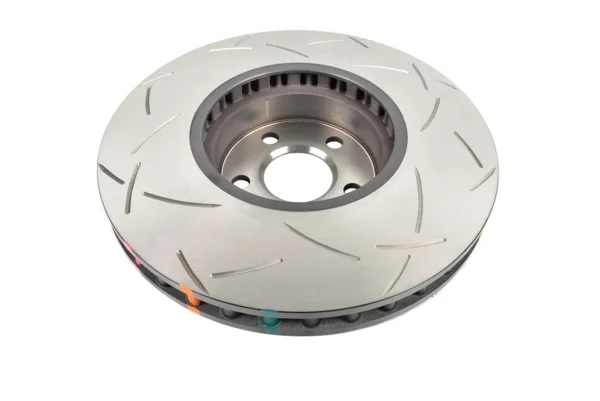

Front Bmw G series DBA43417S Brake Discs 348x36mm 4000 series Slotted

Front Bmw G series DBA43417S Brake Discs 348x36mm 4000 series Slotted



T3 4000 Kangaroo Paw



Feature Description

Advantage

Benefit

t3‘T3 Slot 48 precision CNC machined slots’
  • Tri-Symmetrical curve slots dampens the vibration harmonics or noise
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design
  • A quieter, responsive and smoother brake pedal feel
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs
kpKangaroo Paw – 144 diamond and tear drop pillar ventilation system
  • Increased surface area resulting in greater heat dissipation
  • Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron
  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
tspThermal Stability Profiling
  • Special formulation designed to respond to DBA’s TSP process
  • Minimises warping and cracking and prolongs the service life of the rotor
moitorThermographic Temperature Monitoring
  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours
  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
pPaint protection on non-friction areas
  • Reduces corrosion
  • Enhances appearance
  • Stops any unsightly rust formation
  • Adds value to the product

What is included:



  • 2x (1pair) Front DBA43417S Brake Discs 4000 series – T3 Drilled (BMW Product code:34116860911 34116860912) New

Technical Information:

  • Diameter (mm): 348
  • Height (mm): 66.2
  • Thickness (mm): 36
  • Min. Thickness (mm): 34.4
  • Inner Diameter (mm): 67
  • Number of Holes: 5
  • Disc Vent: Kangaroo Paw
  • Axle: Front
  • Weight (kg): 14



Compatibility:

Axle       Make    Model   Engine / Year  Variant   Category

  • BMW 3 Series (G20) 318      2019-2020       0 TD 148BHP (2019-2020) Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 318      2020-   0 TD and Electric 148BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 318      2020-   0 Turbo 156BHP (2020-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 320      2019-   6 Turbo 170BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 320      2019-   0 Turbo 181BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 320      2019-2020       0 TD 163BHP (2019-2020) Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 320      2019-2020       0 TD 188BHP (2019-2020) Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 320      2020-   0 TD and Electric 188BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 330      2019-   0 Turbo 255BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 330      2019-   0 TD 261BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) 330e    2019-   0 Turbo and Electric 292BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) M340  2019-   0 Turbo 374BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G20) M340  2020-   0 TD and Electric 340BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 318      2020-   0 Turbo 156BHP (2020-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 320      2019-   0 TD 188BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 320      2019-   0 Turbo 181BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 320      2020-   0 TD and Electric 188BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 330      2019-   0 Turbo 255BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 330      2019-   0 TD 261BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) 330e    2019-   0 Turbo and Electric 292BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (G21) M340  2020-   0 TD and Electric 340BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 320      2019-   0 TD 188BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 320      2019-   0 Turbo 181BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 320      2020-   0 TD and Electric 188BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 330      2019-   0 Turbo 255BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 330      2019-   0 TD 261BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) 330e    2019-   0 Turbo and Electric 292BHP (2019-)         Front            Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) M340  2019-   0 Turbo 374BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G20) M340  2020-   0 TD and Electric 340BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) 320      2019-   0 TD 188BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) 330      2019-   0 Turbo 255BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) 330      2019-   0 TD 261BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) 330e    2019-   0 Turbo and Electric 292BHP (2019-)         Front            Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) M340  2019-   0 Turbo 374BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 3 Series (xDrive G21) M340  2020-   0 TD and Electric 340BHP (2020-) Front   Brake Caliper: Brembo
  • BMW 5 Series (G30) 530      2017-   0 Turbo 252BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (G30) 530      2017-2020       0 TD 265BHP (2017-2020) Front   Brake Caliper: Brembo
  • BMW 5 Series (G30) 530e    2017-   0 Turbo and Electric 252+95BHP (2017-)  Front   Brake Caliper: Brembo
  • BMW 5 Series (G30) 540      2017-   0 TD 320BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 5 Series (G30) 540      2017-   0 Turbo 340BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (G31) 530      2017-   0 Turbo 252BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (G31) 530      2017-2020       0 TD 265BHP (2017-2020) Front   Brake Caliper: Brembo
  • BMW 5 Series (G31) 540      2017-   0 TD 320BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 5 Series (G31) 540      2017-   0 Turbo 340BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G30) 530      2017-   0 Turbo 252BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G30) 530      2017-2020       0 TD 265BHP (2017-2020) Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G30) 530e    2017-   0 Turbo and Electric 252+95BHP (2017-)  Front            Brake Caliper: Brembo
  • BMW 5 Series (xDrive G30) 540      2017-   0 TD 320BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G30) 540      2017-   0 Turbo 340BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G31) 530      2017-   0 Turbo 252BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G31) 530      2017-2020       0 TD 265BHP (2017-2020) Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G31) 540      2017-   0 TD 320BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 5 Series (xDrive G31) 540      2017-   0 Turbo 340BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 6 Series (GT G32) 620           2018-   0 TD 190BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW 6 Series (GT G32) 630           2017-   0 Turbo 255BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 6 Series (GT G32) 630           2017-   0 TD 261BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 6 Series (GT G32) 640           2017-   0 Turbo 335BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 6 Series (xDrive GT G32) 620           2018-   0 TD 190BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW 6 Series (xDrive GT G32) 630           2017-   0 TD 261BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW 6 Series (xDrive GT G32) 640           2017-   0 Turbo 335BHP (2017-)     Front   Brake Caliper: Brembo
  • BMW 6 Series (xDrive GT G32) 640           2017-   0 Twin TD 320BHP (2017-)            Front            Brake Caliper: Brembo
  • BMW 7 Series (G11) 725      2015-   0 TD 231BHP (2015-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G11) 730      2015-   0 Turbo 258BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (G11) 730      2015-   0 TD 265BHP (2015-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G11) 740      2015-   0 Turbo 326BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (G11) 740      2016-   0 TD 320BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G11) 740e    2016-   0 Turbo and Electric 326BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G12) 730      2015-   0 Turbo 258BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (G12) 730      2015-   0 TD 265BHP (2015-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G12) 740      2015-   0 Turbo 326BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (G12) 740      2016-   0 TD 320BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (G12) 740e    2016-   0 Turbo and Electric 326BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G11) 730      2015-   0 TD 265BHP (2015-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G11) 740      2015-   0 Turbo 326BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G11) 740      2016-   0 TD 320BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G11) 740e    2016-   0 Turbo and Electric 326BHP (2016-)         Front            Brake Caliper: Brembo
  • BMW 7 Series (xDrive G12) 730      2015-   0 TD 265BHP (2015-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G12) 740      2015-   0 Turbo 326BHP (2015-)     Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G12) 740      2016-   0 TD 320BHP (2016-)         Front   Brake Caliper: Brembo
  • BMW 7 Series (xDrive G12) 740e    2016-   0 Turbo and Electric 326BHP (2016-)         Front            Brake Caliper: Brembo
  • BMW 8 Series (Convertible G14) 840          2019-   0 Turbo 340BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 8 Series (Convertible G14) 840d        2018-   0 TD 320BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW 8 Series (Coupe G15) 840      2019-   0 Turbo 340BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 8 Series (Coupe G15) 840d    2018-   0 TD 320BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW 8 Series (Gran Coupe G16) 840         2019-   0 Turbo 340BHP (2019-)     Front   Brake Caliper: Brembo
  • BMW 8 Series (Gran Coupe G16) 840d       2019-   0 TD 320BHP (2019-)         Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2017-   0 TD (20d) 187BHP (2017-)            Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2017-   0 Turbo (20) 181BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2017-   0 Turbo (30) 249BHP (2017-)         Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2017-   0 TD (30d) 261BHP (2017-)            Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2017-2019       0 Turbo (M40) 355BHP (2017-2019)          Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2019-   0 TD (M40d) 326BHP (2019-)        Front   Brake Caliper: Brembo
  • BMW X3 (G01)         2019-   0 Turbo (M40) 390BHP (2019-)      Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 TD (20d) 188BHP (2018-)            Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 Turbo (20) 181BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 Turbo (30) 248BHP (2018-)         Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 Twin TD (25d) 228BHP (2018-)  Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 TD (30d) 261BHP (2018-)            Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 Turbo (M40) 355BHP (2018-)      Front   Brake Caliper: Brembo
  • BMW X4 (G02)         2018-   0 Twin TD (M40d) 322BHP (2018-)           Front   Brake Caliper: Brembo
  • BMW X5 (G05)         2018-   0 TD (30d) 261BHP (2018-)            Front   Brake Caliper: Brembo
  • BMW X5 (G05)         2018-   0 Turbo (40i) 335BHP (2018-)        Front   Brake Caliper: Brembo
  • BMW Z4 G29            2018-   0 Turbo (M40) 335BHP (2018-)      Front   Brake Caliper: Brembo
  • BMW Z4 G29            2019-   0 Turbo (20) 197BHP M Performance Package (2019-)     Front            Brake Caliper: Brembo
  • BMW Z4 G29            2019-   0 Turbo (30) 258BHP M Performance Package (2019-)     Front            Brake Caliper: Brembo
  • TOYOTA GR Supra        2019-   0 Turbo 335BHP (2019-)     Front   Brake Caliper: Brembo
  • TOYOTA Supra   2019-   0 Turbo 335BHP (2019-)     Front   Brake Caliper: Brembo





For more information please contact us at Office@killerbrakes.com

Additional information

Weight 28 kg
Dimensions 40 × 40 × 30 cm
Condition:

Brand:

Product code:

DBA43417S

BMW Product code:

34116860911 , 34116860912
