Description

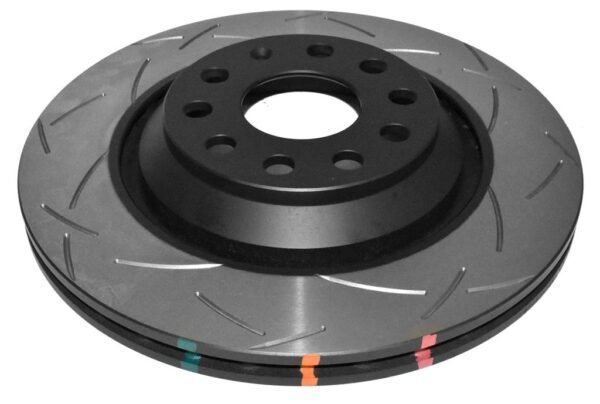

Rear DBA42809S Brake Discs 310x22mm 4000 series T3 Slotted New

Rear DBA42809S Brake Discs 310x22mm 4000 series T3 Slotted New



T3 4000 Kangaroo Paw



Feature Description

Advantage

Benefit

t3‘T3 Slot 48 precision CNC machined slots’
  • Tri-Symmetrical curve slots dampens the vibration harmonics or noise
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design
  • A quieter, responsive and smoother brake pedal feel
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs
kpKangaroo Paw – 144 diamond and tear drop pillar ventilation system
  • Increased surface area resulting in greater heat dissipation
  • Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron
  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
tspThermal Stability Profiling
  • Special formulation designed to respond to DBA’s TSP process
  • Minimises warping and cracking and prolongs the service life of the rotor
moitorThermographic Temperature Monitoring
  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours
  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
pPaint protection on non-friction areas
  • Reduces corrosion
  • Enhances appearance
  • Stops any unsightly rust formation
  • Adds value to the product

What is included:

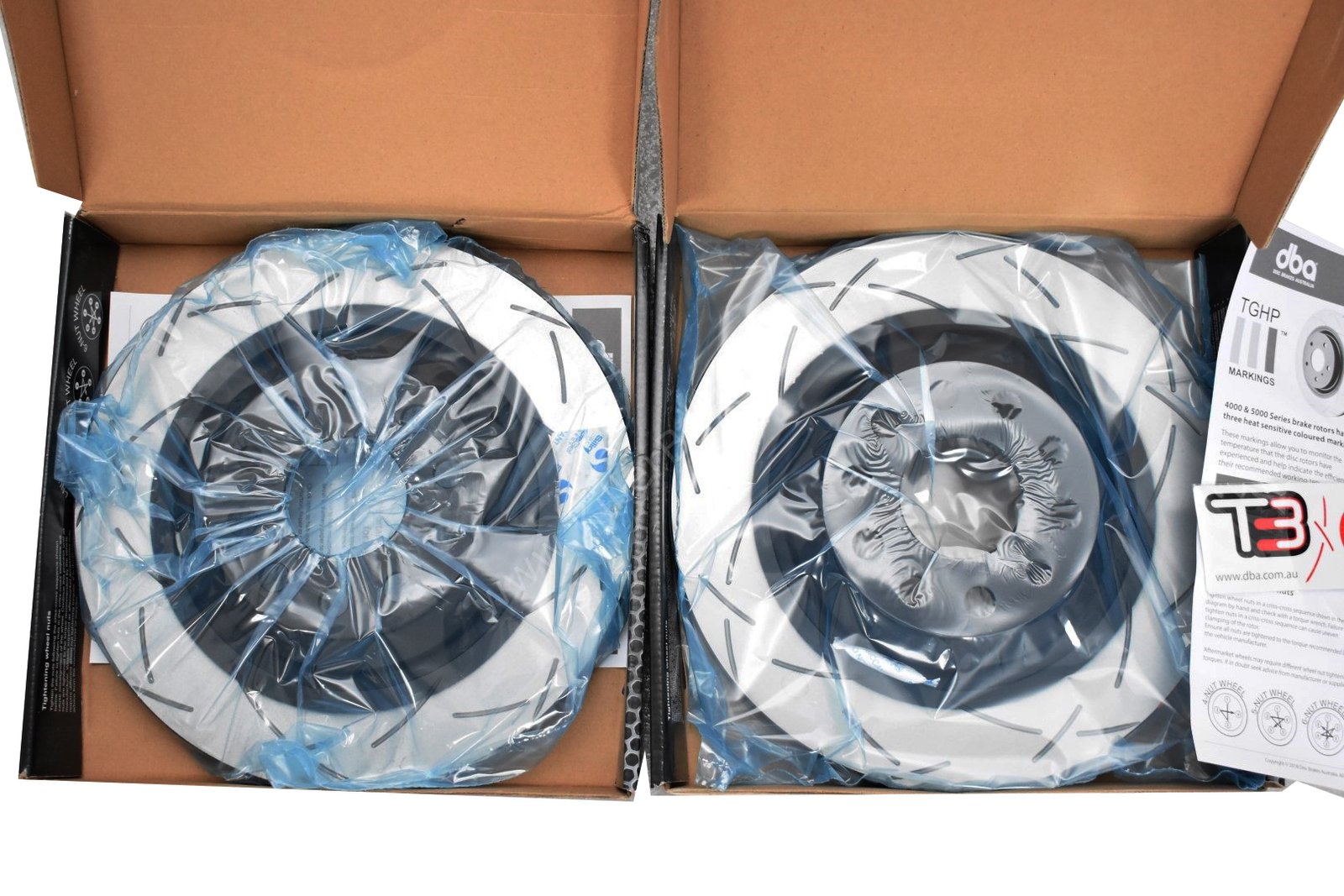

  • 2x Rear Brake Discs DBA 42809S 310x22mm- 4000 series – T3 Slotted (Audi Product code:1K0615601N) New

TECHNICAL INFORMATION:

    Diameter (mm): 310

    Height (mm): 48.5

    Thickness (mm): 22

    Min. Thickness (mm): 20

    Inner Diameter (mm): 65

    Number of Holes: 5

    Disc Vent: Kangaroo Paw

    Axle: Rear

    Weight (kg): 6.93



Compatibility:



  • Axle       Make    Model   Engine / Year
  • Rear       AUDI     A3 quattro (8P) 3.2 (2003-2009)
  • Rear       AUDI     RS3 (8P)               2.5 Turbo (2011-2013)
  • Rear       AUDI     RS3 (8V)               2.5 Turbo (2015-2016)
  • Rear       AUDI     RS3 (8V)               2.5 Turbo (2017-)
  • Rear       AUDI     S3 (8P)  2.0 Turbo PR-1LK (2006-2012)
  • Rear       AUDI     S3 (8P)  2.0 Turbo PR-1ZK (2006-2012)
  • Rear       AUDI     S3 (8V) 2.0 Turbo (2012-)
  • Rear       AUDI     S3 (8V) 2.0 Turbo (2013-)
  • Rear       AUDI     S3 (8V) 2.0 Turbo (2016-)
  • Rear       AUDI     TT (8S)  2.0 Turbo (2014-)
  • Rear       AUDI     TT quattro (8S)  2.0 Turbo (2014-)
  • Rear       AUDI     TTS quattro (8S)                2.0 Turbo (2014-)
  • Rear       AUDI     TTS quattro (8S)                2.0 Turbo (2015-)
  • Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2014-2016)
  • Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2015-2017)
  • Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2015-2018)
  • Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2017-)
  • Rear       SEAT      Leon (5F)             2.0 Turbo Cupra (2017-2018)
  • Rear       SKODA  Superb (3T)         1.8 Turbo 4WD (2008-2015)
  • Rear       SKODA  Superb (3T)         2.0 TD 4WD (2008-2015)
  • Rear       SKODA  Superb (3T)         2.0 Turbo (2010-2015)
  • Rear       SKODA  Superb (3T)         3.6 4WD (2008-2015)
  • Rear       SKODA  Superb (3T)         3.6 4WD (2014-2015)
  • Rear       VOLKSWAGEN  Arteon  1.5 Turbo (2018-)
  • Rear       VOLKSWAGEN  Arteon  2.0 TD (2017-)
  • Rear       VOLKSWAGEN  Arteon  2.0 TD (2018-)
  • Rear       VOLKSWAGEN  Arteon  2.0 TD 4motion (2018-)
  • Rear       VOLKSWAGEN  Arteon  2.0 Turbo (2018-)
  • Rear       VOLKSWAGEN  Arteon  2.0 Turbo 4motion (2017-)
  • Rear       VOLKSWAGEN  Arteon  2.0 Twin TD (2017-)
  • Rear       VOLKSWAGEN  CC           2.0 Turbo (2012-2017)
  • Rear       VOLKSWAGEN  CC           3.6 (2012-2017)
  • Rear       VOLKSWAGEN  Eos         3.2 (2006-2009)
  • Rear       VOLKSWAGEN  Eos         3.6 (2009-2011)
  • Rear       VOLKSWAGEN  Golf (Mk5)          3.2 R32 (2005-2009)
  • Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LK) (2009-2013)
  • Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1LM) (2009-2013)
  • Rear       VOLKSWAGEN  Golf (Mk6)          2.0 Turbo R (PR-1ZK) (2009-2013)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi (Performance Package) (2013-2017)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi (Performance Package) (2017-)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi Clubsport (2016-)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo GTi Clubsport S (2016-)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo R (2013-)
  • Rear       VOLKSWAGEN  Golf (Mk7)          2.0 Turbo R (2017-)
  • Rear       VOLKSWAGEN  Passat   2.0 Turbo (2005-2010)
  • Rear       VOLKSWAGEN  Passat   2.0 Turbo (2011-2014)
  • Rear       VOLKSWAGEN  Passat   2.0 Turbo (2015-)

Minimum wheel size 17”



For more information please contact us at Office@killerbrakes.com

Additional information

Weight 17 kg
Dimensions 40 × 40 × 30 cm
Condition:

Brand:

Product code:

DBA42809S

Audi Product code:

1K0615601N
