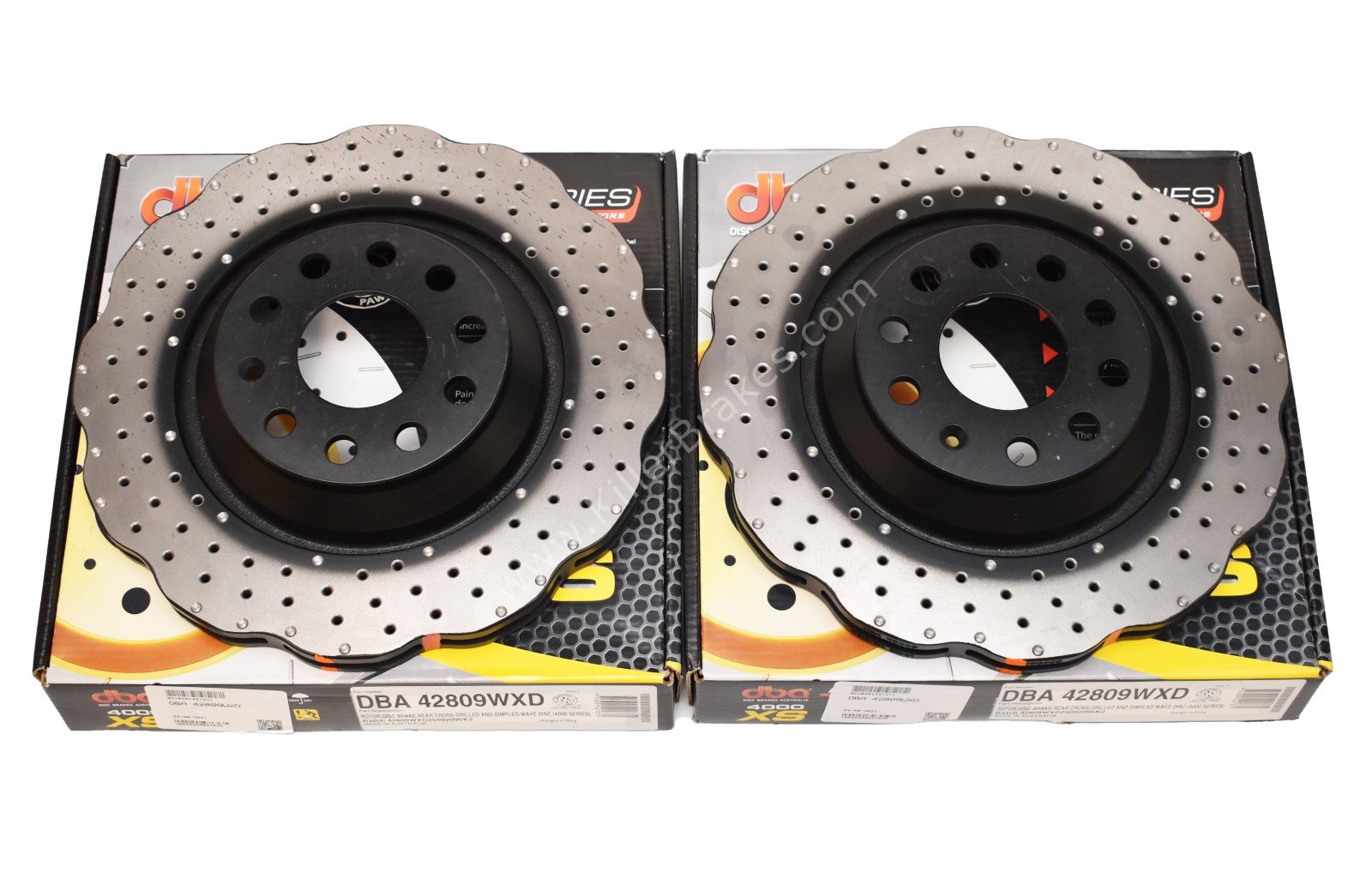

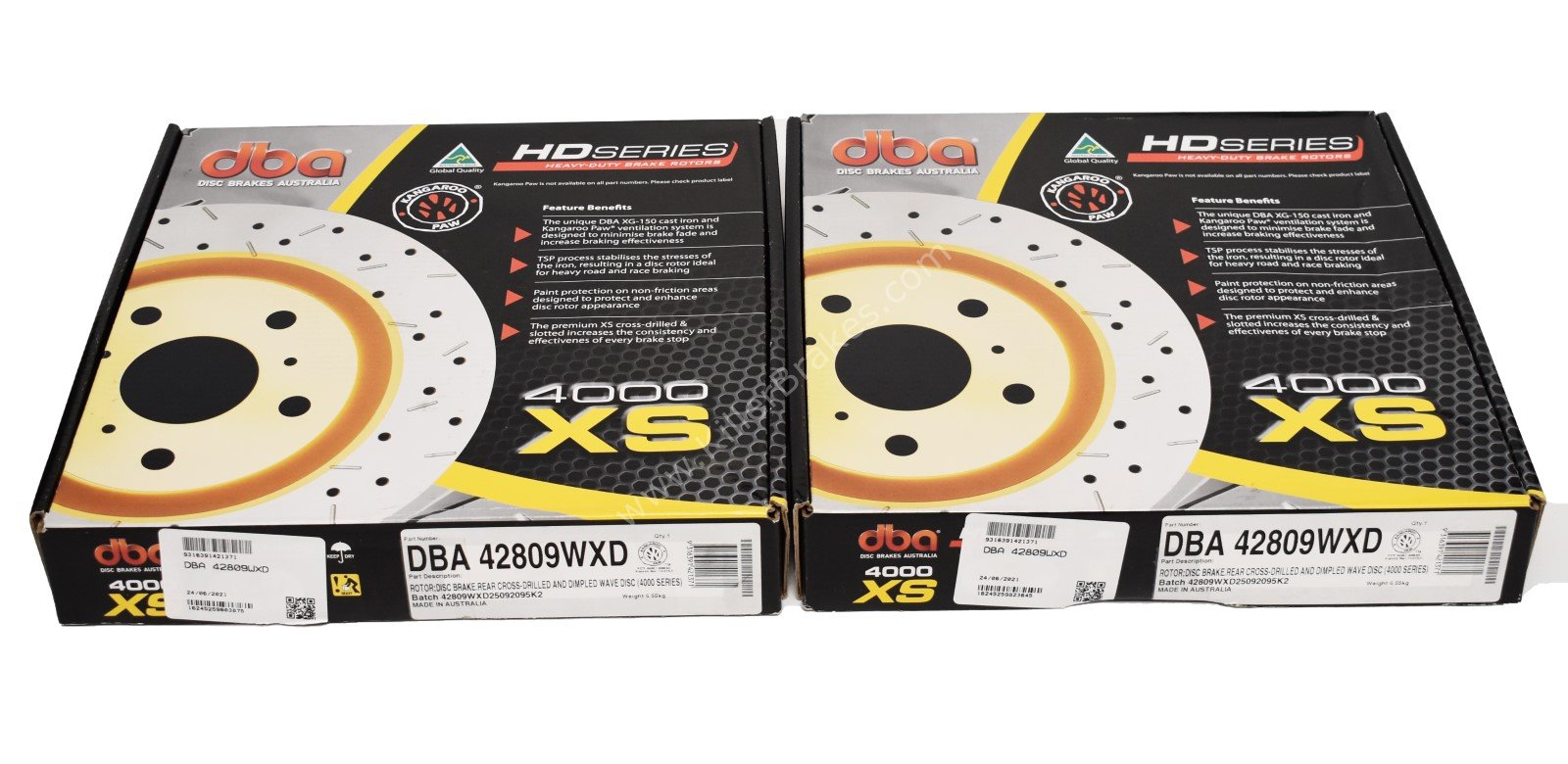

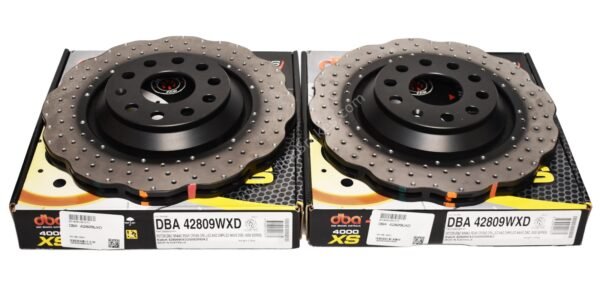

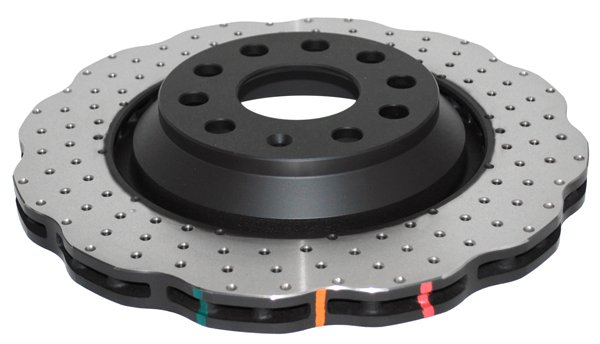

Rear Wave DBA42809WXD Brake Discs 310x22mm 4000 series T3 Drilled New

Description

Rear Wave DBA42809WXD Brake Discs 310x22mm 4000 series T3 Drilled New

Rear Wave DBA42809WXD Brake Discs 310x22mm 4000 series T3 Drilled New





Feature Description	Advantage	Benefit
‘T3 Slot 48 precision CNC machined slots’	Tri-Symmetrical curve slots dampens the vibration harmonics or noise Increased number of out-gassing exit points for brake pad friction gasses to escape through Universal slot design	A quieter, responsive and smoother brake pedal feel Increases the consistency and effectiveness of every brake stop Eliminates the need for left and right discs
Kangaroo Paw – 144 diamon d and tear drop pillar ventilation system	Increased surface area resulting in greater heat dissipation	Minimises brake fade and increases braking effectiveness Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
XG150 High Carbon Alloyed Iron	An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time	Minimises warping and cracking and prolongs the service life of the rotor
Thermal Stability Profiling	Special formulation designed to respond to DBA’s TSP process	Minimises warping and cracking and prolongs the service life of the rotor
Thermographic Temperature Monitoring	Heat paint markings change colour at specific temperature thresholds When temperature thresholds are exceeded paint markings will permanently change colours	Offers the driver a clear indication of peak braking temperatures Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
Paint protection on non-friction areas	Reduces corrosion Enhances appearance	Stops any unsightly rust formation Adds value to the product

What is included:



• 2x(1Pair) Rear wave Brake Discs DBA42809WXD 310x22mm- 4000 series – T3 Drilled (Audi Product code:1K0615601N) New

TECHNICAL INFORMATION:

    Diameter (mm): 310

    Height (mm): 48.5

    Thickness (mm): 22

    Min. Thickness (mm): 20

    Inner Diameter (mm): 65

    Number of Holes: 5

    Disc Vent: Kangaroo Paw

    Axle: Rear

    Weight (kg): 6.55



Compatibility:



• • Rear AUDI     A3 quattro (8P) 2 (2003-2009)
  • Rear AUDI     RS3 (8P)               5 Turbo (2011-2013)
  • Rear AUDI     RS3 (8V)               5 Turbo (06/2017-) (sedan)
  • Rear AUDI     RS3 (8V)               5 Turbo (10/2017-) (sportback)
  • Rear AUDI     RS3 (8V)               5 Turbo (2015-06/2017) (hatchback)
  • Rear AUDI     RSQ3 (8U)           5 Turbo (2013-2018)
  • Rear AUDI     S3 (8P)  0 Turbo PR-1LK (2006-2012)
  • Rear AUDI     S3 (8P)  0 Turbo PR-1ZK (2006-2012)
  • Rear AUDI     S3 (8V) 0 Turbo (2013-2016)
  • Rear AUDI     S3 (8V) 0 Turbo (2016-2020)
  • Rear AUDI     TT (8S)  0 Turbo (2014-)
  • Rear AUDI     TT quattro (8S)  0 Turbo (2014-)
  • Rear AUDI     TT RS quattro (8S)            5 Turbo (2016-)
  • Rear AUDI     TTS quattro (8S)                0 Turbo (2014-)
  • Rear AUDI     TTS quattro (8S)                0 Turbo (2015-)
  • Rear CUPRA  Ateca    0 Turbo 296hp (2018-)
  • Rear SEAT      Leon (5F)             0 Turbo Cupra (2014-2016)
  • Rear SEAT      Leon (5F)             0 Turbo Cupra (2015-2017)
  • Rear SEAT      Leon (5F)             0 Turbo Cupra (2015-2018)
  • Rear SEAT      Leon (5F)             0 Turbo Cupra (2017-)
  • Rear SEAT      Leon (5F)             0 Turbo Cupra (2017-2018)
  • Rear SKODA  Kodiaq  0 TD RS (2018-) 4WD
  • Rear SKODA  Octavia (5E)        0 Turbo RS (2013-2020)
  • Rear SKODA  Octavia (5E)        0 Turbo vRS (2013-2020)
  • Rear SKODA  Superb (3T)         8 Turbo 4WD (2008-2015)
  • Rear SKODA  Superb (3T)         0 TD 4WD (2008-2015)
  • Rear SKODA  Superb (3T)         0 Turbo (2010-2015)
  • Rear SKODA  Superb (3T)         6 4WD (2008-2015)
  • Rear SKODA  Superb (3T)         6 4WD (2014-2015)
  • Rear VOLKSWAGEN  Arteon  5 Turbo (2018-)
  • Rear VOLKSWAGEN  Arteon  0 TD (2017-)
  • Rear VOLKSWAGEN  Arteon  0 TD (2018-)
  • Rear VOLKSWAGEN  Arteon  0 TD 4motion (2018-)
  • Rear VOLKSWAGEN  Arteon  0 Turbo (2018-)
  • Rear VOLKSWAGEN  Arteon  0 Turbo 4motion (2017-)
  • Rear VOLKSWAGEN  Arteon  0 Twin TD (2017-)
  • Rear VOLKSWAGEN  CC           0 Turbo (2012-2017)
  • Rear VOLKSWAGEN  CC           6 (2012-2017)
  • Rear VOLKSWAGEN  Eos         2 (2006-2009)
  • Rear VOLKSWAGEN  Eos         6 (2009-2011)
  • Rear VOLKSWAGEN  Golf (Mk5)          2 R32 (2005-2009)
  • Rear VOLKSWAGEN  Golf (Mk6)          0 Turbo R (PR-1LK) (2009-2013)
  • Rear VOLKSWAGEN  Golf (Mk6)          0 Turbo R (PR-1LM) (2009-2013)
  • Rear VOLKSWAGEN  Golf (Mk6)          0 Turbo R (PR-1ZK) (2009-2013)
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Clubsport (2016-2019) TRW
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Clubsport S (2016-2019) TRW
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Performance Package (2013-2017) TRW
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo GTi Performance Package (2017-2019) TRW
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo R (2013-2019) TRW
  • Rear VOLKSWAGEN  Golf (Mk7)          0 Turbo R (2017-2019) TRW
  • Rear VOLKSWAGEN  Passat   0 Turbo (2005-2010)
  • Rear VOLKSWAGEN  Passat   0 Turbo (2011-2014)
  • Rear VOLKSWAGEN  Passat   0 Turbo (2015-)
  • Rear VOLKSWAGEN  Passat   0 Twin TD (2014-)
  • Rear VOLKSWAGEN  Passat   2 from chassis code 3C8 (2005-2010)
  • Rear VOLKSWAGEN  Passat   2 to chassis code 3C7 (2005-2010)
  • Rear VOLKSWAGEN  Passat   6 4 Motion (2012-2014)
  • Rear VOLKSWAGEN  Passat   6 from chassis code 3C8 (2007-2012)
  • Rear VOLKSWAGEN  Passat   6 to chassis code 3C7 (2007-2012)
  • Rear VOLKSWAGEN  Passat (B6)          0 Turbo (2005-2010)
  • Rear VOLKSWAGEN  Passat (B6)          2 to chassis code 3C7 (2005-2010)
  • Rear VOLKSWAGEN  Passat (B6)          6 to chassis code 3C7 (2007-2010)
  • Rear VOLKSWAGEN  Passat (B7)          0 Turbo (2011-2014)
  • Rear VOLKSWAGEN  Passat (B7)          6 to chassis code 3C7 (2010-2012)
  • Rear VOLKSWAGEN  Passat Alltrack   8 Turbo (2012-2015)
  • Rear VOLKSWAGEN  Passat Alltrack   0 TD (2012-2015)
  • Rear VOLKSWAGEN  Passat Alltrack   0 TD (2013-2015)
  • Rear VOLKSWAGEN  Passat Alltrack   0 Turbo (2012-2015)
  • Rear VOLKSWAGEN  Passat Alltrack (3G)         0 TD (2015-)
  • Rear VOLKSWAGEN  Passat Alltrack (3G)         0 Turbo (2015-)
  • Rear VOLKSWAGEN  Passat CC             0 Turbo (2008-2012)
  • Rear VOLKSWAGEN  Passat CC             6 4 Motion (2008-2012)
  • Rear VOLKSWAGEN  Scirocco                0 Turbo R (2009-2014)
  • Rear VOLKSWAGEN  Scirocco                0 Turbo R (2014-2017)



For more information please contact us at Office@killerbrakes.com

Additional information

Weight	17 kg
Dimensions	40 × 40 × 30 cm
Condition:	New
Brand:	DBA
Product code:	DBA42809WXD
Audi Product code:	1K0615601N
